SDR0604-102KL

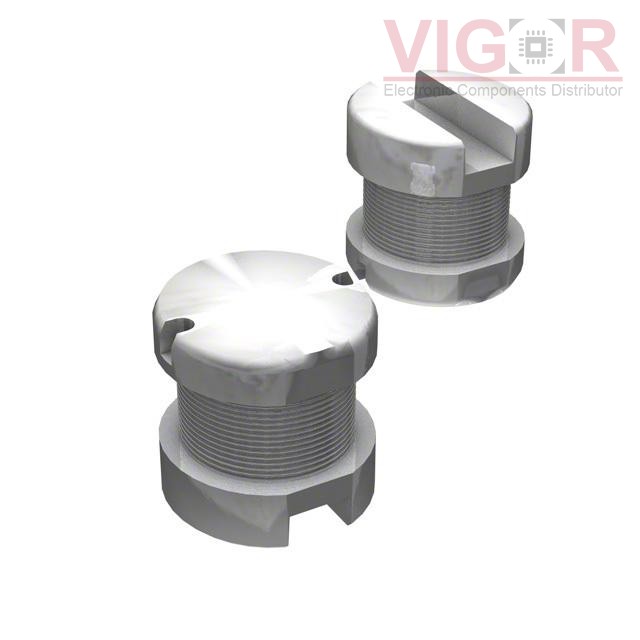

Image is for reference,
please contact us to get the real picture

Part No :: SDR0604-102KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 1MH 120MA 6.8 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SDR0604-102KL PDF

Availability: 5656 pieces

Unit Price: ~~$0.57000~~

Current price of SDR0604-102KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0604-102KL Specifications

Type	Description
Series:	SDR0604
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1 mH
Tolerance:	±10%
Current Rating (Amps):	120 mA
Current - Saturation (Isat):	120mA
Shielding:	Unshielded
DC Resistance (DCR):	6.8Ohm Max
Q @ Freq:	45 @ 252kHz
Frequency - Self Resonant:	1.5MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):	0.189" (4.80mm)
