0512CDMCCDS-R56MC

0512CDMCCDS-R56MC

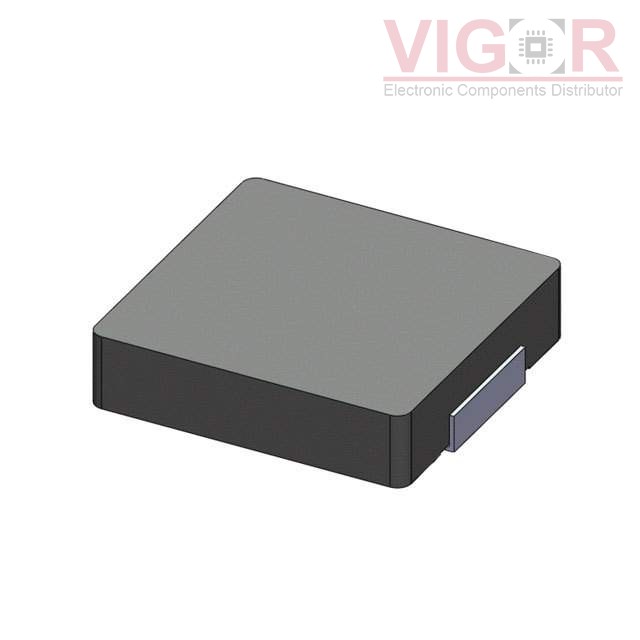

Image is for reference,
please contact us to get the real picture

Part No :

0512CDMCCDS-R56MC

Manufacturer
Sumida Corporation
Description
FIXED IND 560NH 7.2A 18.6MOHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
0512CDMCCDS-R56MC PDF
Availability
4000 pieces
Unit Price
$1.14000

Current price of 0512CDMCCDS-R56MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0512CDMCCDS-R56MC Specifications
Type Description
Series:0512CDMCC/DS
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded
Material - Core:Metal
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):7.2 A
Current - Saturation (Isat):8A
Shielding:Shielded
DC Resistance (DCR):18.6mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:SMD
Size / Dimension:0.213" L x 0.205" W (5.40mm x 5.20mm)
Height - Seated (Max):0.047" (1.20mm)
