AX97-20100

AX97-20100

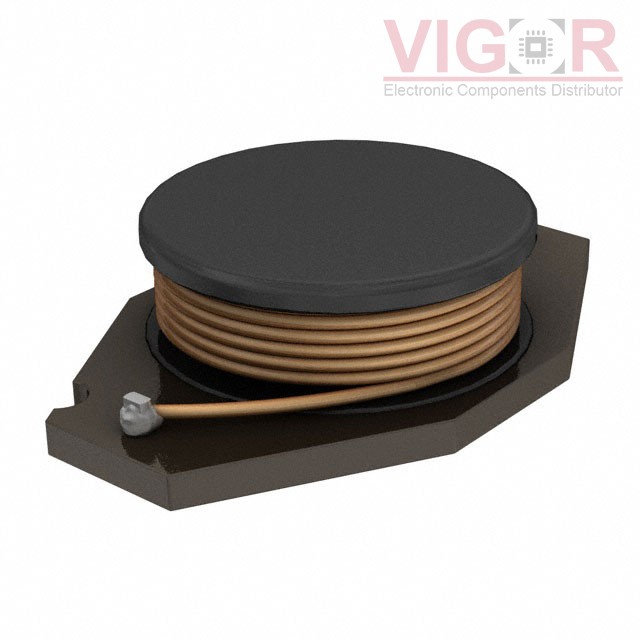

Image is for reference,
please contact us to get the real picture

Part No :

AX97-20100

Manufacturer
Triad Magnetics
Description
FIXED IND 10UH 2A 70 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
AX97-20100 PDF
Availability
0 pieces
Unit Price
$0.79050

Current price of AX97-20100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX97-20100 Specifications
Type Description
Series:AX97
Package:Box
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:10 µH
Tolerance:±20%
Current Rating (Amps):2 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):70mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:SMD
Size / Dimension:0.530" L x 0.370" W (13.46mm x 9.40mm)
Height - Seated (Max):0.138" (3.50mm)
