LGJ12575TS-221M1R3-H

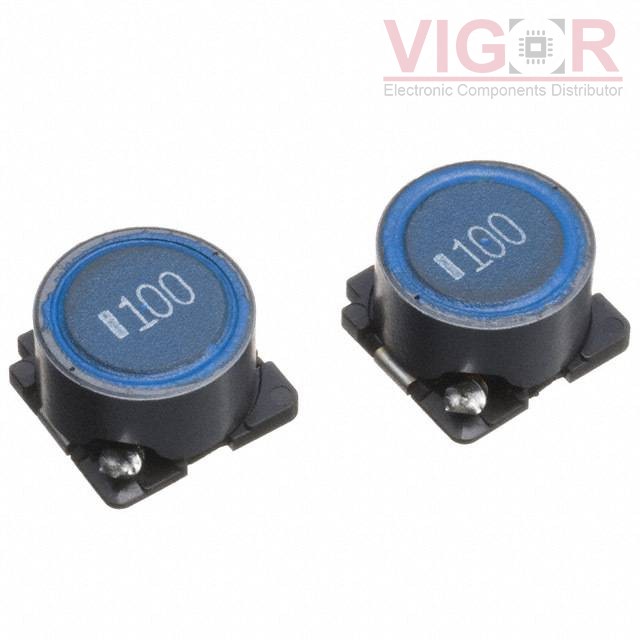

Image is for reference,
please contact us to get the real picture

Part No :: LGJ12575TS-221M1R3-H

Manufacturer: TDK Corporation

Description: FIXED IND 220UH 1.3A 258 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: LGJ12575TS-221M1R3-H PDF

Availability: 0 pieces

Unit Price: ~~$4.50120~~

Current price of LGJ12575TS-221M1R3-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LGJ12575TS-221M1R3-H Specifications

Type	Description
Series:	LGJ
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	220 µH
Tolerance:	±20%
Current Rating (Amps):	1.3 A
Current - Saturation (Isat):	1.3A
Shielding:	Shielded
DC Resistance (DCR):	258mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):	0.295" (7.50mm)
