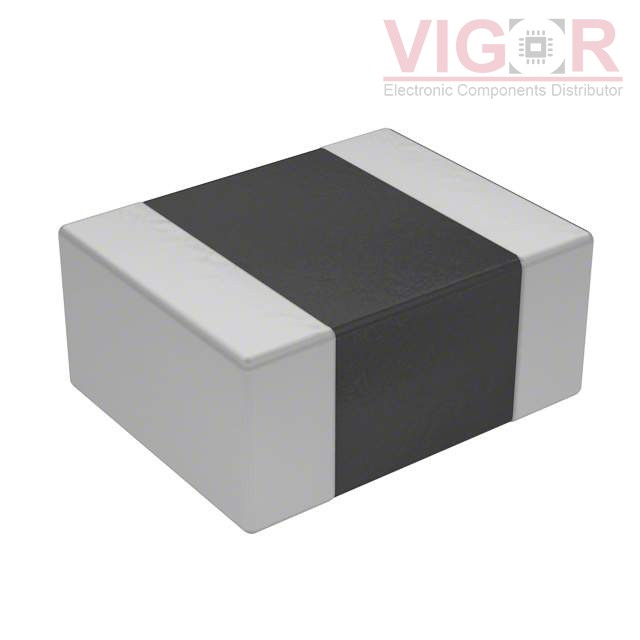

LQM2MPNR33MGHL

Image is for reference,
please contact us to get the real picture

Part No :: LQM2MPNR33MGHL

Manufacturer: TOKO / Murata

Description: FIXED IND 330NH 3.1A 30 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: LQM2MPNR33MGHL PDF

Availability: 0 pieces

Unit Price: ~~$0.10710~~

Current price of LQM2MPNR33MGHL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQM2MPNR33MGHL Specifications

Type	Description
Series:	LQM2
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	330 nH
Tolerance:	±20%
Current Rating (Amps):	3.1 A
Current - Saturation (Isat):	3.7A
Shielding:	Shielded
DC Resistance (DCR):	30mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	90MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0806 (2016 Metric)
Supplier Device Package:	0806 (2016 Metric)
Size / Dimension:	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):	0.039" (1.00mm)
