CDRH5D14NP-220PC

CDRH5D14NP-220PC

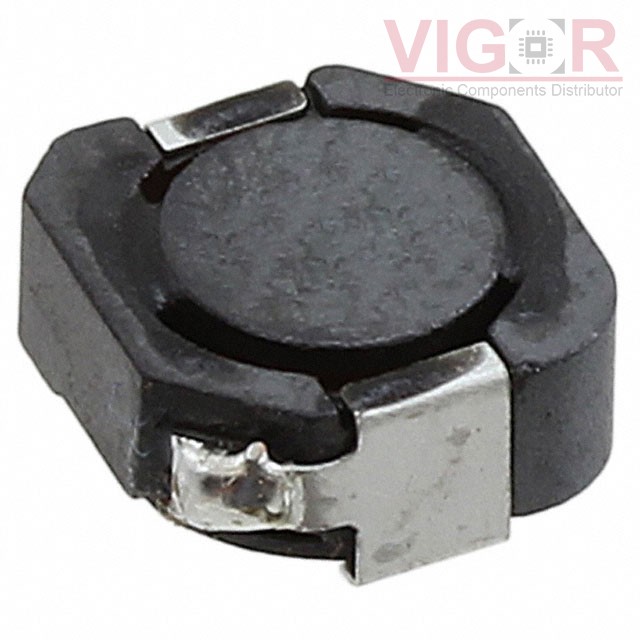

Image is for reference,
please contact us to get the real picture

Part No :

CDRH5D14NP-220PC

Manufacturer
Sumida Corporation
Description
FIXED IND 22UH 800MA 384 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
CDRH5D14NP-220PC PDF
Availability
0 pieces
Unit Price
$0.42720

Current price of CDRH5D14NP-220PC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDRH5D14NP-220PC Specifications
Type Description
Series:CDRH5D14
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±25%
Current Rating (Amps):800 mA
Current - Saturation (Isat):630mA
Shielding:Shielded
DC Resistance (DCR):384mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.240" L x 0.228" W (6.10mm x 5.80mm)
Height - Seated (Max):0.059" (1.50mm)
