PM4346.822NLT

PM4346.822NLT

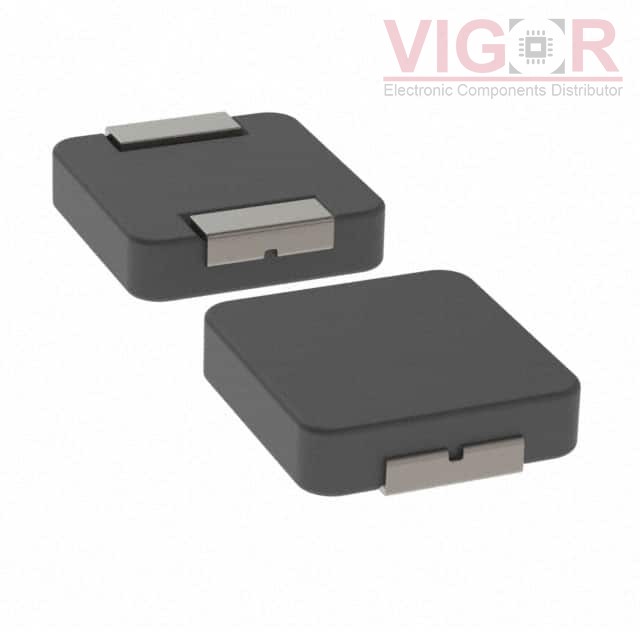

Image is for reference,
please contact us to get the real picture

Part No :

PM4346.822NLT

Manufacturer
PulseLarsen Antenna
Description
FIXED IND 8.2UH 9.5A 22.5 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
PM4346.822NLT PDF
Availability
0 pieces
Unit Price
$0.86955

Current price of PM4346.822NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM4346.822NLT Specifications
Type Description
Series:PM4346
Package:Tape & Reel (TR)
Part Status:Active
Type:Molded
Material - Core:-
Inductance:8.2 µH
Tolerance:±20%
Current Rating (Amps):9.5 A
Current - Saturation (Isat):18A
Shielding:Unshielded
DC Resistance (DCR):22.5mOhm Max
Q @ Freq:-
Frequency - Self Resonant:11MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max):0.197" (5.00mm)
