NLCV32T-680K-EFD

Image is for reference,
please contact us to get the real picture

Part No :: NLCV32T-680K-EFD

Manufacturer: TDK Corporation

Description: FIXED IND 68UH 140MA 3.64 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: NLCV32T-680K-EFD PDF

Availability: 0 pieces

Unit Price: ~~$0.12811~~

Current price of NLCV32T-680K-EFD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLCV32T-680K-EFD Specifications

Type	Description
Series:	NLCV-EFD
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±10%
Current Rating (Amps):	140 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.64Ohm Max
Q @ Freq:	15 @ 2.52MHz
Frequency - Self Resonant:	12MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	1210 (3225 Metric)
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

IHLP2525EZER1R5M01

FIXED IND 1.5UH 12A 9 MOHM SMD

HOT

8230-68-RC

FIXED IND 100UH 125MA 8 OHM TH

HOT

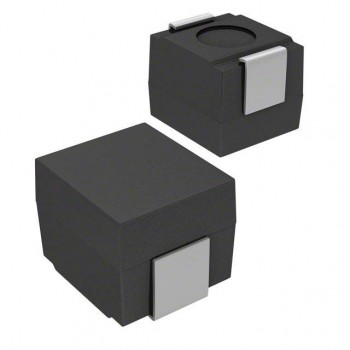

HF1008R-272J
