CMH322522-8R2KL

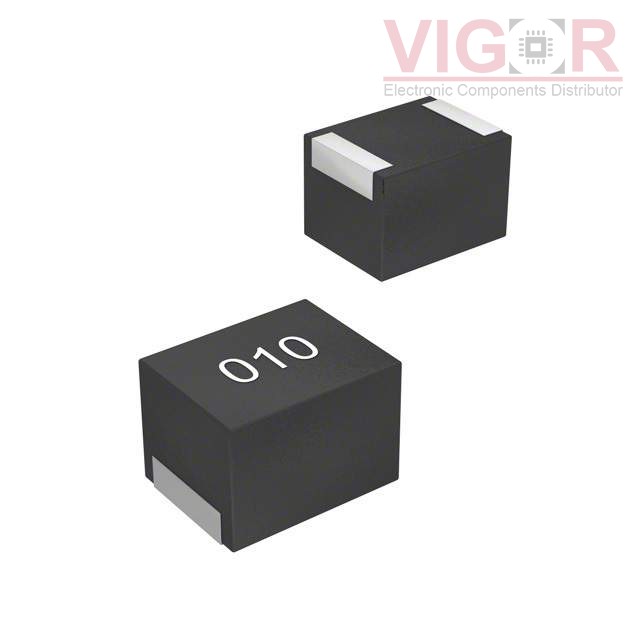

Image is for reference,
please contact us to get the real picture

Part No :: CMH322522-8R2KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 8.2UH 170MA 2 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: CMH322522-8R2KL PDF

Availability: 0 pieces

Unit Price: ~~$0.20570~~

Current price of CMH322522-8R2KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMH322522-8R2KL Specifications

Type	Description
Series:	CMH322522
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	8.2 µH
Tolerance:	±10%
Current Rating (Amps):	170 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	2Ohm Max
Q @ Freq:	30 @ 7.96MHz
Frequency - Self Resonant:	30MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	1210
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)
