8532R-09L

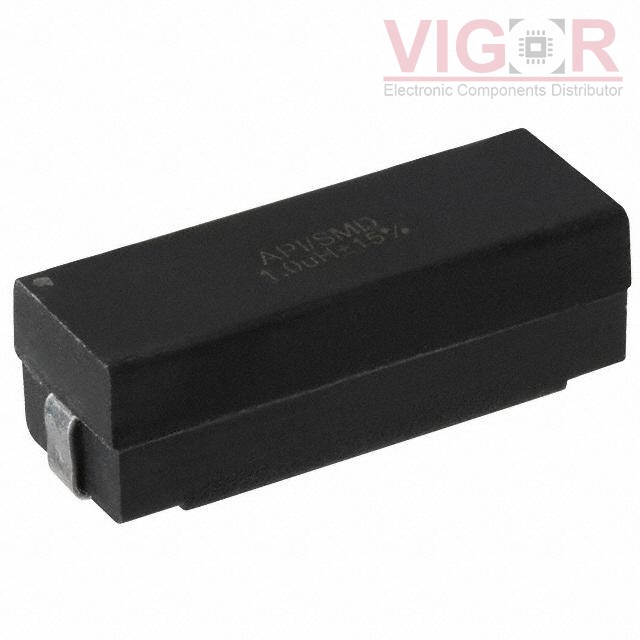

Image is for reference,
please contact us to get the real picture

Part No :: 8532R-09L

Manufacturer: API Delevan

Description: FIXED IND 4.7UH 4.01A 22 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: 8532R-09L PDF

Availability: 0 pieces

Unit Price: ~~$5.17000~~

Current price of 8532R-09L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8532R-09L Specifications

Type	Description
Series:	8532R
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	4.7 µH
Tolerance:	±15%
Current Rating (Amps):	4.01 A
Current - Saturation (Isat):	2.9A
Shielding:	Unshielded
DC Resistance (DCR):	22mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.860" L x 0.320" W (21.84mm x 8.12mm)
Height - Seated (Max):	0.286" (7.26mm)
