744025220

Image is for reference,
please contact us to get the real picture

Part No :: 744025220

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 500MA 575 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: 744025220 PDF

Availability: 15012 pieces

Unit Price: ~~$1.54000~~

Current price of 744025220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

744025220 Specifications

Type	Description
Series:	WE-TPC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	750mA
Shielding:	Shielded
DC Resistance (DCR):	575mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	23MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	2828
Size / Dimension:	0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max):	0.118" (3.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

LQW03AW3N7C00D

FIXED IND 3.7NH 340MA 230 MOHM

HOT

CW105550A-33NJ

FIXED IND 33NH 400MA 350MOHM SMD

HOT

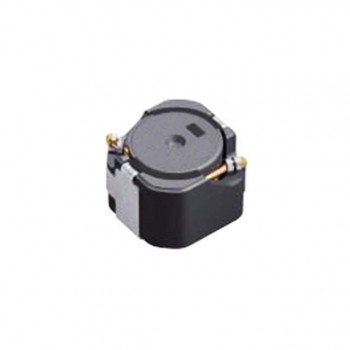

CLF5030NIT-1R0N-D
