LQH2MPN100MGRL

LQH2MPN100MGRL

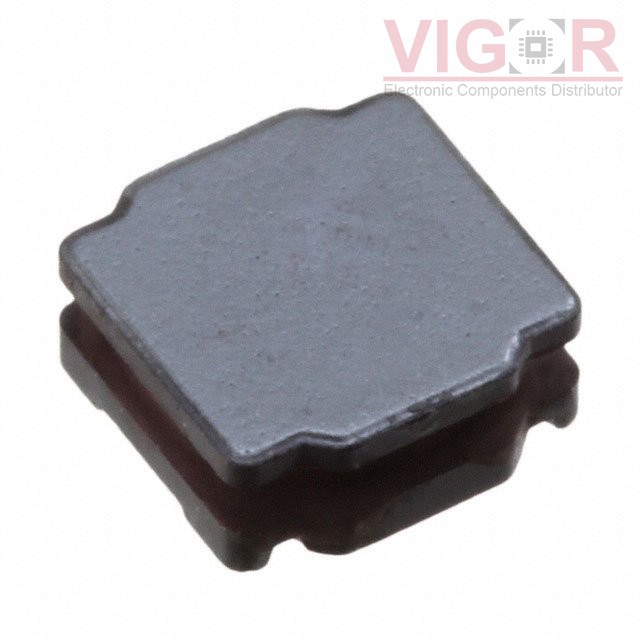

Image is for reference,
please contact us to get the real picture

Part No :

LQH2MPN100MGRL

Manufacturer
TOKO / Murata
Description
FIXED IND 10UH 480MA 1.056 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
LQH2MPN100MGRL PDF
Availability
24807 pieces
Unit Price
$0.27000

Current price of LQH2MPN100MGRL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQH2MPN100MGRL Specifications
Type Description
Series:LQH2
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:10 µH
Tolerance:±20%
Current Rating (Amps):480 mA
Current - Saturation (Isat):610mA
Shielding:Shielded
DC Resistance (DCR):1.056Ohm Max
Q @ Freq:-
Frequency - Self Resonant:30MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0806 (2016 Metric)
Supplier Device Package:0806 (2016 Metric)
Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):0.037" (0.95mm)
