HCTR-503

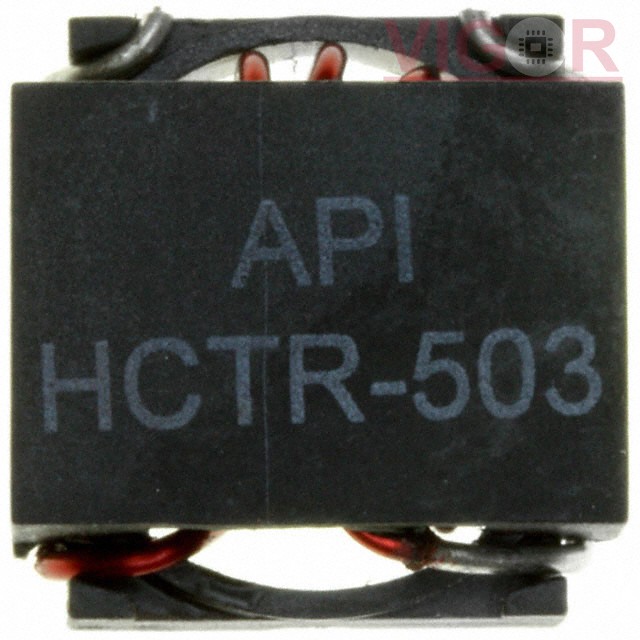

Image is for reference,
please contact us to get the real picture

Part No :: HCTR-503

Manufacturer: API Delevan

Description: FIXED IND 12.5UH 9.25A 11.4 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 18 - Aug 22 2025

DataSheet: HCTR-503 PDF

Availability: 0 pieces

Unit Price: ~~$5.00360~~

Current price of HCTR-503 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCTR-503 Specifications

Type	Description
Series:	HCTR
Package:	Bulk
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron Powder
Inductance:	12.5 µH
Tolerance:	±25%
Current Rating (Amps):	9.25 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	11.4mOhm Max
Q @ Freq:	23 @ 100kHz
Frequency - Self Resonant:	35MHz
Ratings:	-
Operating Temperature:	-30°C ~ 130°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.740" L x 0.740" W (18.80mm x 18.80mm)
Height - Seated (Max):	0.400" (10.16mm)
