WCL2520-1R8-R

WCL2520-1R8-R

Image is for reference,
please contact us to get the real picture

Part No :

WCL2520-1R8-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 1.8UH 320MA 950 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 20 - Aug 24 2025
DataSheet
WCL2520-1R8-R PDF
Availability
0 pieces
Unit Price
$0.09900

Current price of WCL2520-1R8-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WCL2520-1R8-R Specifications
Type Description
Series:WCL2520
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:1.8 µH
Tolerance:±5%
Current Rating (Amps):320 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):950mOhm Max
Q @ Freq:12 @ 7.96MHz
Frequency - Self Resonant:168MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008
Size / Dimension:0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max):0.083" (2.10mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT HCM1A1105V2-3R3-R

HCM1A1105V2-3R3-R

FIXED IND 3.3UH 9.5A 10.7 MOHM

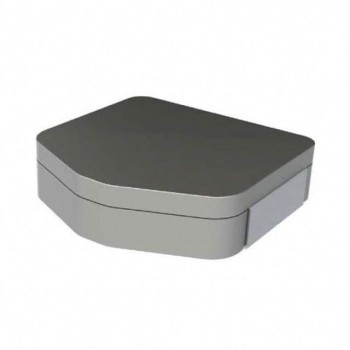

HOT MPX1D1770L150

MPX1D1770L150

FIXED IND 15UH 12A 17.8 MOHM SMD

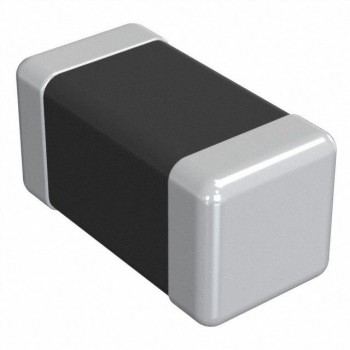

HOT DFE18SANR47ME0L
