S1812R-564F

S1812R-564F

Image is for reference,
please contact us to get the real picture

Part No :

S1812R-564F

Manufacturer
API Delevan
Description
FIXED IND 560UH 84MA 28 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
S1812R-564F PDF
Availability
0 pieces
Unit Price
$6.01460

Current price of S1812R-564F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S1812R-564F Specifications
Type Description
Series:S1812R
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±1%
Current Rating (Amps):84 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):28Ohm Max
Q @ Freq:40 @ 790kHz
Frequency - Self Resonant:2.8MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:790 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812 (4532 Metric)
Size / Dimension:0.189" L x 0.134" W (4.80mm x 3.40mm)
Height - Seated (Max):0.134" (3.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

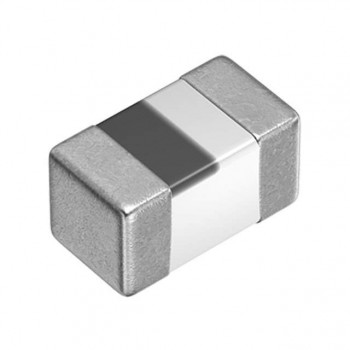

HOT MLG0402P0N3CT000

MLG0402P0N3CT000

FIXED IND 0.3NH 350MA 100 MOHM

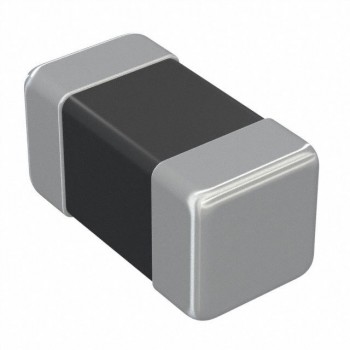

HOT LK1005R22K-T

LK1005R22K-T

FIXED IND 220NH 25MA 790 MOHM

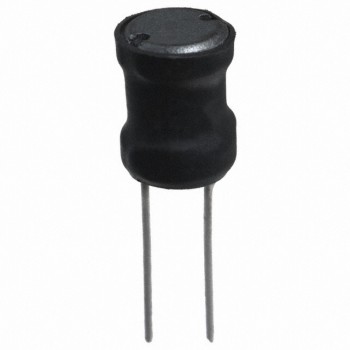

HOT 6000-473K-RC
