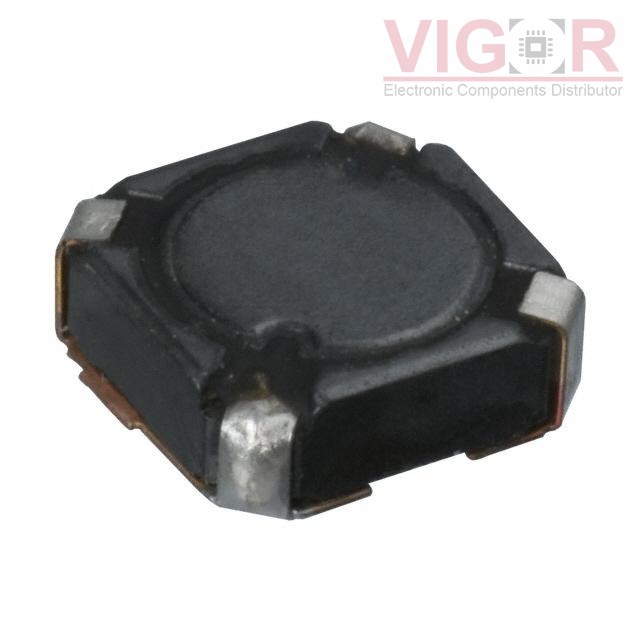

ELL-5PM820M

ELL-5PM820M

Image is for reference,
please contact us to get the real picture

Part No :

ELL-5PM820M

Manufacturer
Panasonic
Description
FIXED IND 82UH 320MA 780 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
ELL-5PM820M PDF
Availability
1897 pieces
Unit Price
$0.39000

Current price of ELL-5PM820M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELL-5PM820M Specifications
Type Description
Series:M
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:-
Inductance:82 µH
Tolerance:±20%
Current Rating (Amps):320 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):780mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max):0.079" (2.00mm)
