LQH3NPH220MMEL

LQH3NPH220MMEL

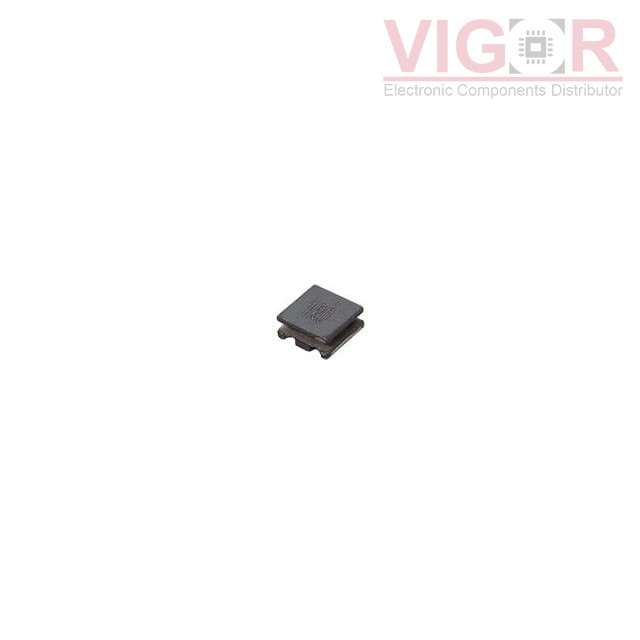

Image is for reference,
please contact us to get the real picture

Part No :

LQH3NPH220MMEL

Manufacturer
TOKO / Murata
Description
FIXED IND 22UH 860MA POWRTRNAUTO
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
LQH3NPH220MMEL PDF
Availability
900 pieces
Unit Price
$0.40000

Current price of LQH3NPH220MMEL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQH3NPH220MMEL Specifications
Type Description
Series:LQH3
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):860 mA
Current - Saturation (Isat):570mA
Shielding:Shielded
DC Resistance (DCR):480mOhm Max
Q @ Freq:-
Frequency - Self Resonant:10MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1212 (3030 Metric)
Supplier Device Package:1212 (3030 Metric)
Size / Dimension:0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):0.059" (1.50mm)
