WL05JT47N

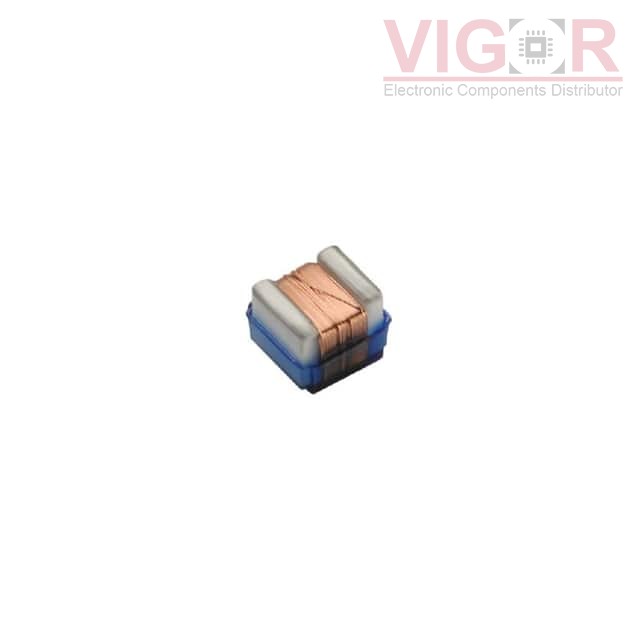

Image is for reference,
please contact us to get the real picture

Part No :: WL05JT47N

Manufacturer: Viking Tech

Description: FIXED IND 47NH 500MA 310MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: WL05JT47N PDF

Availability: 0 pieces

Unit Price: ~~$0.04500~~

Current price of WL05JT47N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WL05JT47N Specifications

Type	Description
Series:	WL
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	47 nH
Tolerance:	±5%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	310mOhm Max
Q @ Freq:	60 @ 500MHz
Frequency - Self Resonant:	1.65GHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	200 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Size / Dimension:	0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Max):	0.060" (1.52mm)
