CM322522-101KL

Image is for reference,
please contact us to get the real picture

Part No :: CM322522-101KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 100UH 60MA 10 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: CM322522-101KL PDF

Availability: 13451 pieces

Unit Price: ~~$0.29000~~

Current price of CM322522-101KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM322522-101KL Specifications

Type	Description
Series:	CM322522
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	100 µH
Tolerance:	±10%
Current Rating (Amps):	60 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	10Ohm Max
Q @ Freq:	20 @ 796kHz
Frequency - Self Resonant:	10MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	796 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.087" (2.20mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

MLG1608SR27JT000

FIXED IND 270NH 200MA 2 OHM SMD

HOT

SDE6603-101M

FIXED IND 100UH 300MA 1.27OHM SM

HOT

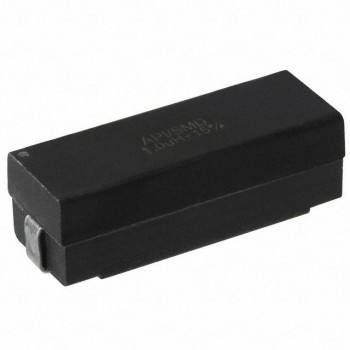

8532-34L
