NS12555T220MNV

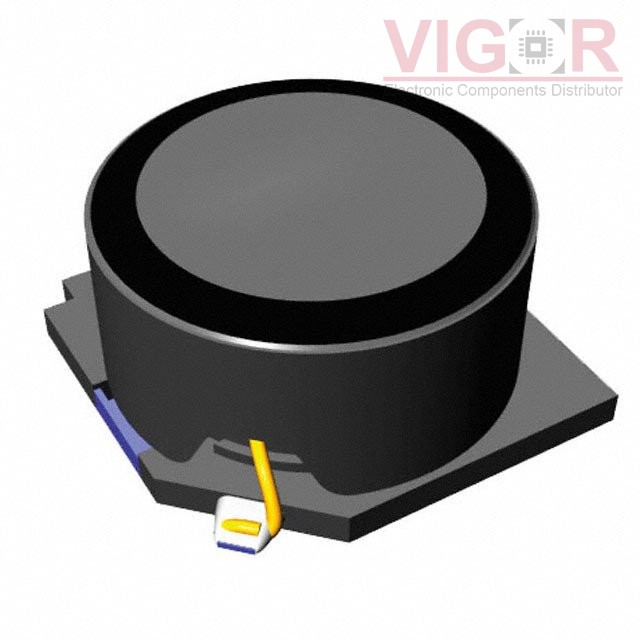

Image is for reference,
please contact us to get the real picture

Part No :: NS12555T220MNV

Manufacturer: TAIYO YUDEN

Description: FIXED IND 22UH 3.81A 35.64 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: NS12555T220MNV PDF

Availability: 0 pieces

Unit Price: ~~$0.85219~~

Current price of NS12555T220MNV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NS12555T220MNV Specifications

Type	Description
Series:	NS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	3.81 A
Current - Saturation (Isat):	3.2A
Shielding:	Shielded
DC Resistance (DCR):	35.64mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	13.2MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):	0.230" (5.85mm)
