8532-22H

8532-22H

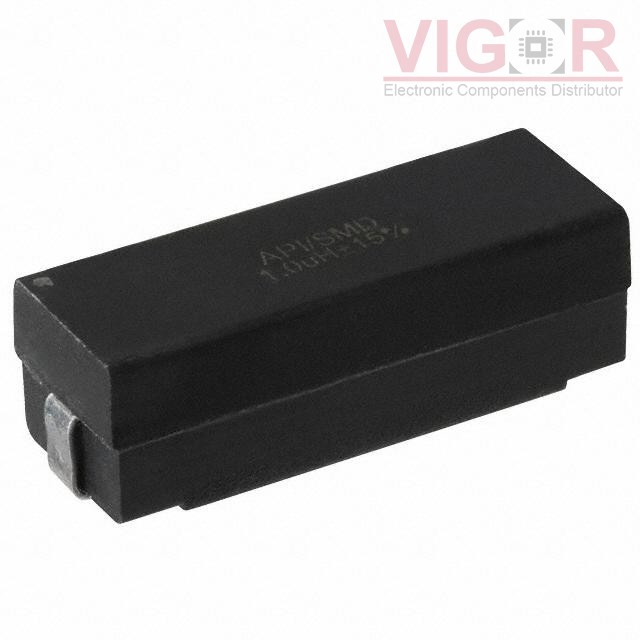

Image is for reference,
please contact us to get the real picture

Part No :

8532-22H

Manufacturer
API Delevan
Description
FIXED IND 56UH 1.65A 130 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
8532-22H PDF
Availability
0 pieces
Unit Price
$7.59844

Current price of 8532-22H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8532-22H Specifications
Type Description
Series:8532
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±3%
Current Rating (Amps):1.65 A
Current - Saturation (Isat):850mA
Shielding:Unshielded
DC Resistance (DCR):130mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD
Supplier Device Package:-
Size / Dimension:0.880" L x 0.330" W (22.35mm x 8.38mm)
Height - Seated (Max):0.286" (7.26mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82442H1272K000

B82442H1272K000

FIXED IND 2.7UH 1.7A 56 MOHM SMD
HOT LQW18CN4N9D0ZD

LQW18CN4N9D0ZD

FIXED IND 4.9NH 2.6A 15 MOHM SMD

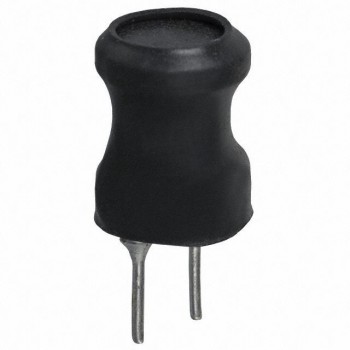

HOT RL622-472K-RC
