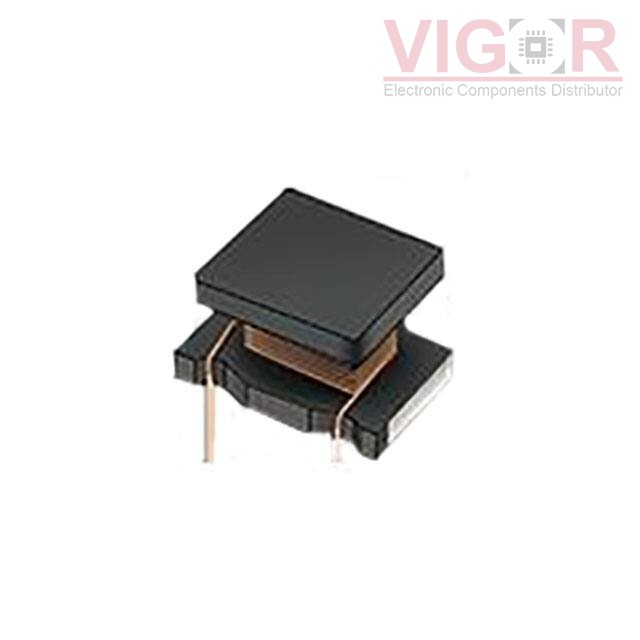

LQH32NZ220J23L

LQH32NZ220J23L

Image is for reference,
please contact us to get the real picture

Part No :

LQH32NZ220J23L

Manufacturer
TOKO / Murata
Description
FIXED IND 22UH 150MA 2.8 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
LQH32NZ220J23L PDF
Availability
1958 pieces
Unit Price
$0.36000

Current price of LQH32NZ220J23L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQH32NZ220J23L Specifications
Type Description
Series:LQH32
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±5%
Current Rating (Amps):150 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.8Ohm Max
Q @ Freq:35 @ 1MHz
Frequency - Self Resonant:14MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.087" (2.20mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT PA4547.152NLT

PA4547.152NLT

FIXED IND 1.5UH 3.4A 77 MOHM SMD
HOT AMELA2010S-R47MT

AMELA2010S-R47MT

IND 0.47UH 4.1A 29MOHM SMD

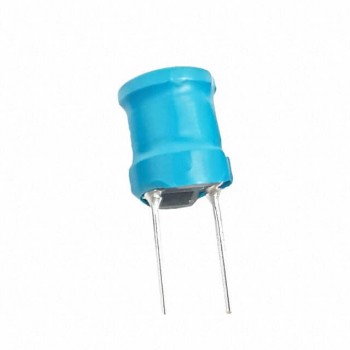

HOT SBC1-101-571
