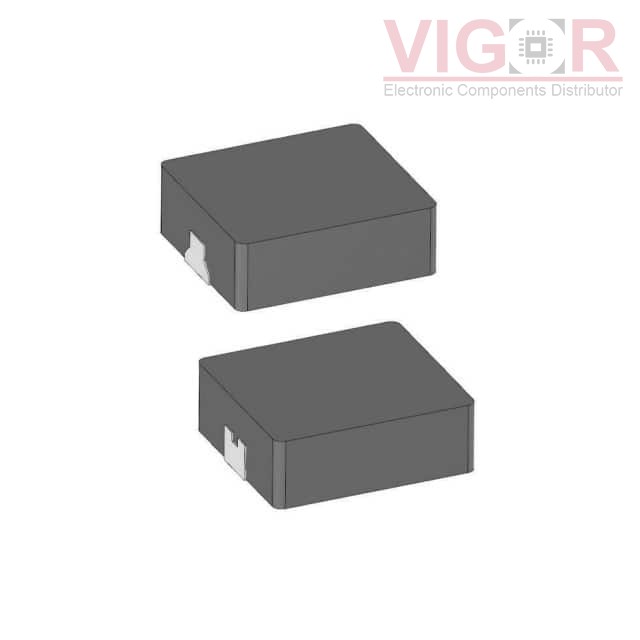

AMDLA1004Q-R56MT

Image is for reference,
please contact us to get the real picture

Part No :: AMDLA1004Q-R56MT

Manufacturer: Abracon

Description: FIXED IND 560NH 25A 1.8 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: AMDLA1004Q-R56MT PDF

Availability: 0 pieces

Unit Price: ~~$0.83462~~

Current price of AMDLA1004Q-R56MT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AMDLA1004Q-R56MT Specifications

Type	Description
Series:	AMDLA1004Q
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Metal
Inductance:	560 nH
Tolerance:	±20%
Current Rating (Amps):	25 A
Current - Saturation (Isat):	34A
Shielding:	Shielded
DC Resistance (DCR):	1.8mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max):	0.157" (4.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

MHQ1005P3N5ST000

FIXED IND 3.5NH 900MA 90 MOHM

HOT

74479778310

FIXED IND 10UH 1A 312.5 MOHM SMD

HOT

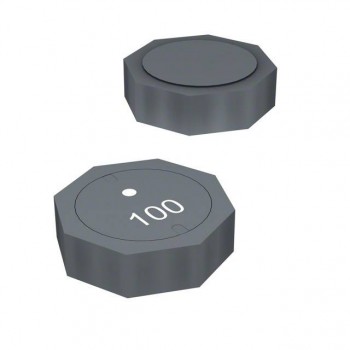

SRU1028-121Y
