SD3114-100-R

SD3114-100-R

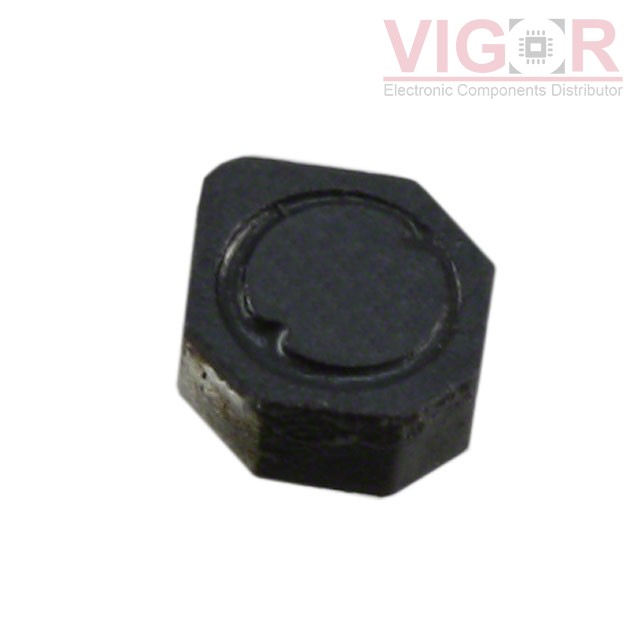

Image is for reference,
please contact us to get the real picture

Part No :

SD3114-100-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 10UH 570MA 458 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
SD3114-100-R PDF
Availability
6487 pieces
Unit Price
$2.53000

Current price of SD3114-100-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SD3114-100-R Specifications
Type Description
Series:SD3114
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:10 µH
Tolerance:±30%
Current Rating (Amps):570 mA
Current - Saturation (Isat):780mA
Shielding:Shielded
DC Resistance (DCR):458mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.122" L x 0.122" W (3.10mm x 3.10mm)
Height - Seated (Max):0.055" (1.40mm)
