LQW2BAN75NG00L

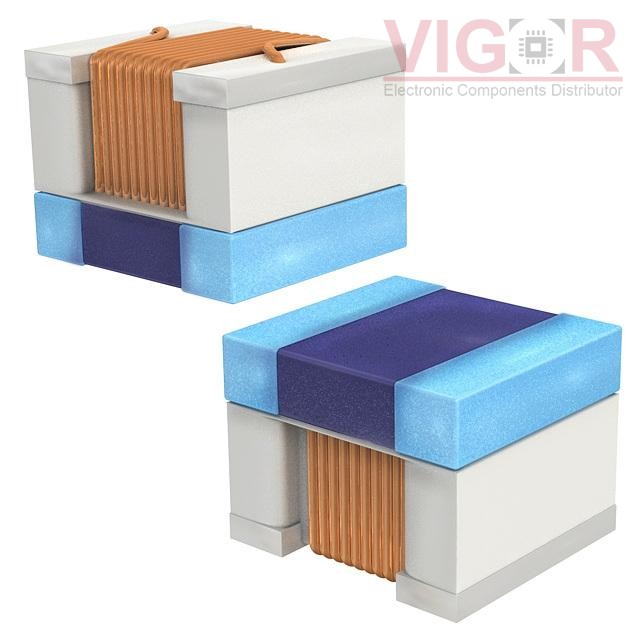

Image is for reference,
please contact us to get the real picture

Part No :: LQW2BAN75NG00L

Manufacturer: TOKO / Murata

Description: FIXED IND 75NH 1.1A 280 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: LQW2BAN75NG00L PDF

Availability: 1725 pieces

Unit Price: ~~$0.48000~~

Current price of LQW2BAN75NG00L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW2BAN75NG00L Specifications

Type	Description
Series:	LQW2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	75 nH
Tolerance:	±2%
Current Rating (Amps):	1.1 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	280mOhm Max
Q @ Freq:	68 @ 500MHz
Frequency - Self Resonant:	1.45GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	200 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2015 Metric)
Supplier Device Package:	-
Size / Dimension:	0.082" L x 0.060" W (2.09mm x 1.53mm)
Height - Seated (Max):	0.060" (1.52mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

768775282

FIXED IND 820UH 350MA 2.77 OHM

HOT

SDR0302-150ML

FIXED IND 15UH 650MA 400MOHM SMD

HOT

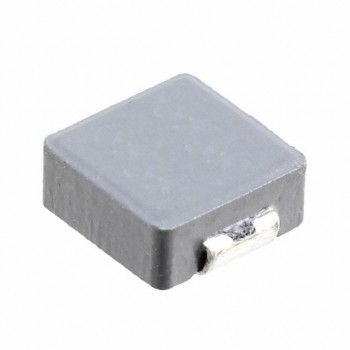

SRP7028A-1R0M
