VLS3012HBX-2R2M

VLS3012HBX-2R2M

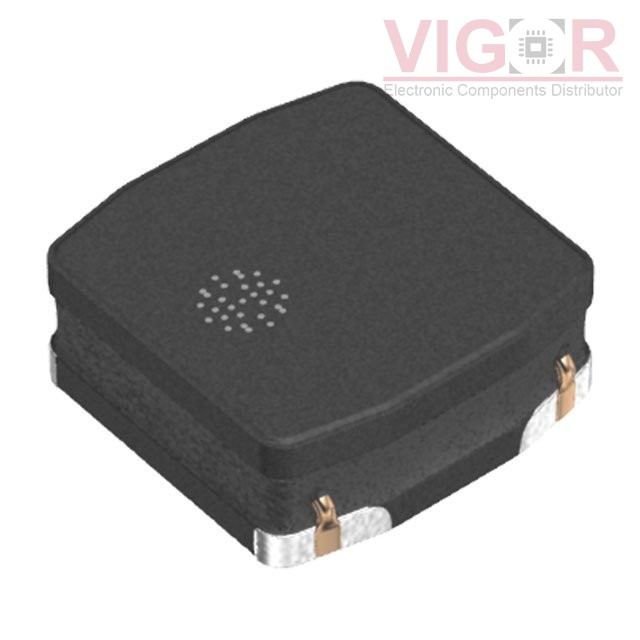

Image is for reference,
please contact us to get the real picture

Part No :

VLS3012HBX-2R2M

Manufacturer
TDK Corporation
Description
FIXED IND 2.2UH 3.15A 106 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
VLS3012HBX-2R2M PDF
Availability
16097 pieces
Unit Price
$0.66000

Current price of VLS3012HBX-2R2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VLS3012HBX-2R2M Specifications
Type Description
Series:VLS-HBX
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Metal
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):3.15 A
Current - Saturation (Isat):3.35A
Shielding:Shielded
DC Resistance (DCR):106mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):0.047" (1.20mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT BWLS00161109R10J00

BWLS00161109R10J00

FIXED IND 100NH 1.5A 130 MOHM
HOT SDS680R-683M

SDS680R-683M

FIXED IND 68UH 400MA 290 MOHM

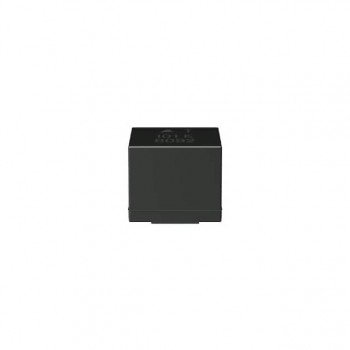

HOT B82442T1225K000
