NLCV32T-3R3M-PFD

NLCV32T-3R3M-PFD

Image is for reference,
please contact us to get the real picture

Part No :

NLCV32T-3R3M-PFD

Manufacturer
TDK Corporation
Description
FIXED IND 3.3UH 690MA 208 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
NLCV32T-3R3M-PFD PDF
Availability
0 pieces
Unit Price
$0.12811

Current price of NLCV32T-3R3M-PFD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLCV32T-3R3M-PFD Specifications
Type Description
Series:NLCV-PFD
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Type:Wirewound
Material - Core:Ferrite
Inductance:3.3 µH
Tolerance:±20%
Current Rating (Amps):690 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):208mOhm Max
Q @ Freq:10 @ 7.96MHz
Frequency - Self Resonant:54MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210 (3225 Metric)
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.094" (2.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LMLP06D6M150CTAS

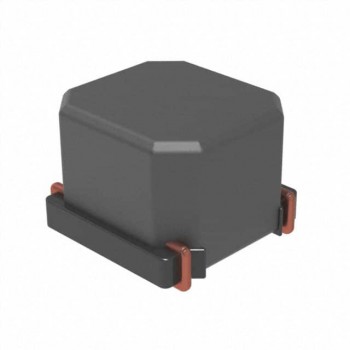

LMLP06D6M150CTAS

FIXED IND 15UH 1.9A 77 MOHM SMD
HOT 37142C

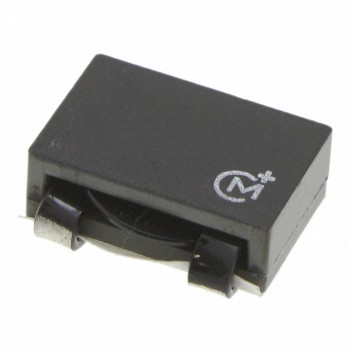

37142C

FIXED IND 1.4UH 16A 1.9 MOHM SMD
HOT B82477D4302M900

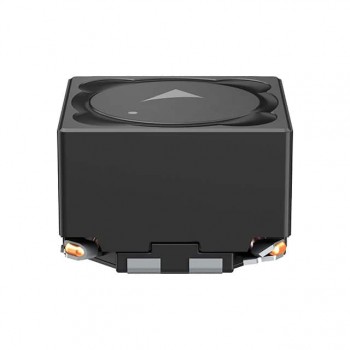

B82477D4302M900
