LDZ2817220K-10

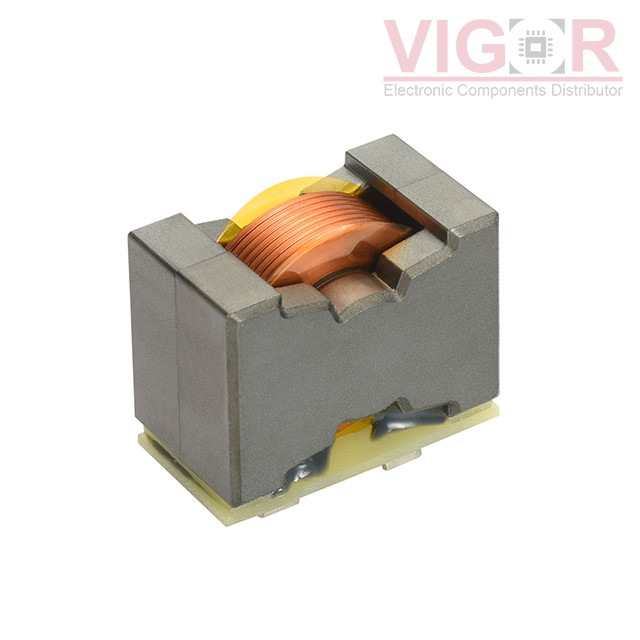

Image is for reference,
please contact us to get the real picture

Part No :: LDZ2817220K-10

Manufacturer: Laird - Performance Materials

Description: FIXED IND 22UH 26A 3 MOHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: LDZ2817220K-10 PDF

Availability: 31 pieces

Unit Price: ~~$8.24000~~

Current price of LDZ2817220K-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LDZ2817220K-10 Specifications

Type	Description
Series:	LDZ2817
Package:	Tray
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	26 A
Current - Saturation (Isat):	16.4A
Shielding:	Shielded
DC Resistance (DCR):	3mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	300 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical, 4 Leads (Open)
Supplier Device Package:	-
Size / Dimension:	1.063" L x 0.669" W (27.00mm x 17.00mm)
Height - Seated (Max):	0.906" (23.00mm)
