NLCV25T-220K-PF

NLCV25T-220K-PF

Image is for reference,
please contact us to get the real picture

Part No :

NLCV25T-220K-PF

Manufacturer
TDK Corporation
Description
FIXED IND 22UH 160MA 3.64 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
NLCV25T-220K-PF PDF
Availability
9150 pieces
Unit Price
$0.24000

Current price of NLCV25T-220K-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLCV25T-220K-PF Specifications
Type Description
Series:NLCV-PF
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±10%
Current Rating (Amps):160 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):3.64Ohm Max
Q @ Freq:30 @ 2.52MHz
Frequency - Self Resonant:18MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.075" (1.90mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

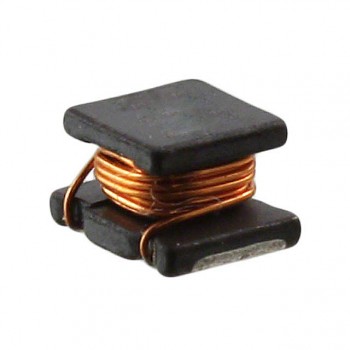

HOT 744032180

744032180

FIXED IND 18UH 240MA 1.1 OHM SMD

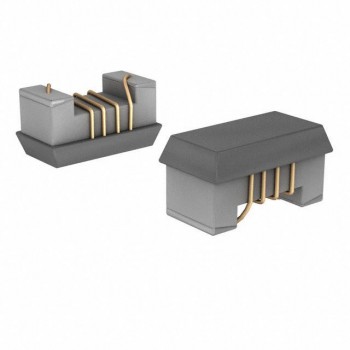

HOT 744916051

744916051

FIXED IND 5.1NH 1.2A 100 MOHM

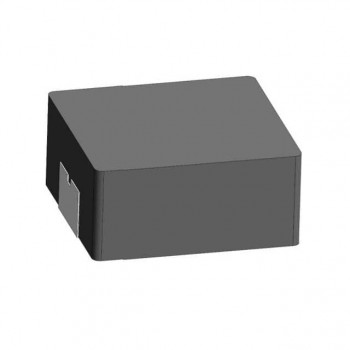

HOT AMPLA1306S-7R0MT
