HCM1A1104-R56-R

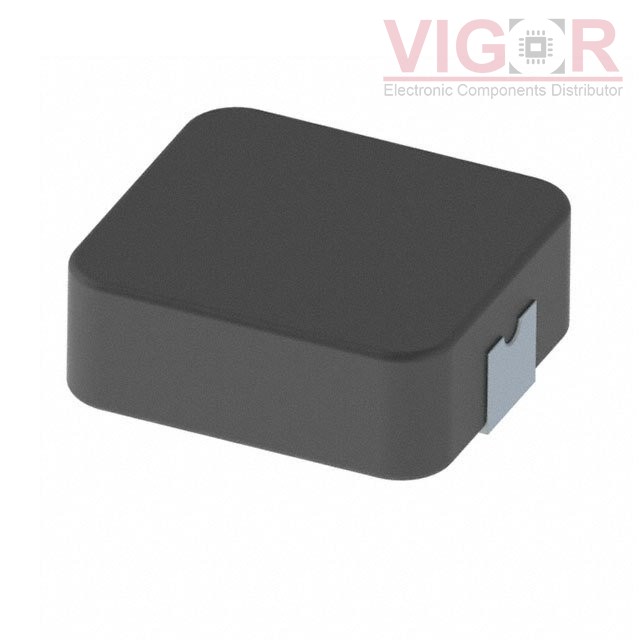

Image is for reference,
please contact us to get the real picture

Part No :: HCM1A1104-R56-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 560NH 22.5A 1.8 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: HCM1A1104-R56-R PDF

Availability: 0 pieces

Unit Price: ~~$1.62690~~

Current price of HCM1A1104-R56-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCM1A1104-R56-R Specifications

Type	Description
Series:	HCM1A
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Iron Powder
Inductance:	560 nH
Tolerance:	±20%
Current Rating (Amps):	22.5 A
Current - Saturation (Isat):	24A
Shielding:	Shielded
DC Resistance (DCR):	1.8mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max):	0.157" (4.00mm)
