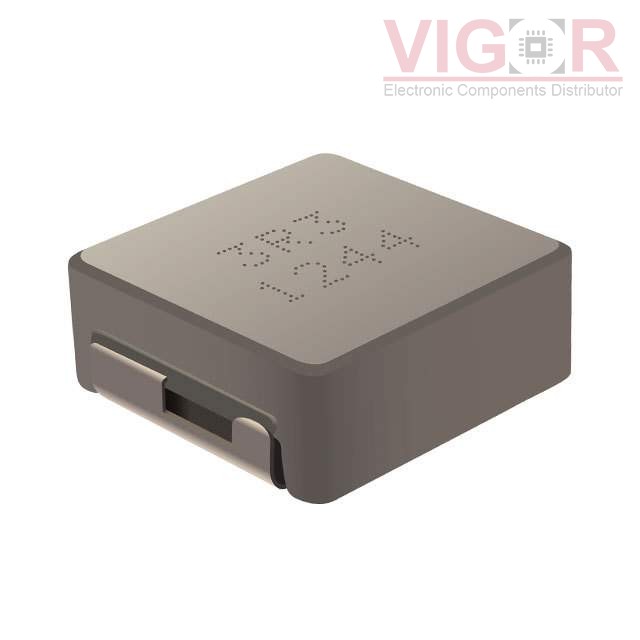

SRP1770TA-4R7M

Image is for reference,
please contact us to get the real picture

Part No :: SRP1770TA-4R7M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 4.7UH 25A 5.5 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SRP1770TA-4R7M PDF

Availability: 775 pieces

Unit Price: ~~$4.59000~~

Current price of SRP1770TA-4R7M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRP1770TA-4R7M Specifications

Type	Description
Series:	SRP1770TA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Carbonyl Powder
Inductance:	4.7 µH
Tolerance:	±20%
Current Rating (Amps):	25 A
Current - Saturation (Isat):	41A
Shielding:	Shielded
DC Resistance (DCR):	5.5mOhm Max
Q @ Freq:	20 @ 100kHz
Frequency - Self Resonant:	15MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.665" L x 0.665" W (16.90mm x 16.90mm)
Height - Seated (Max):	0.276" (7.00mm)
