AIAC-0805C-22NK-T

AIAC-0805C-22NK-T

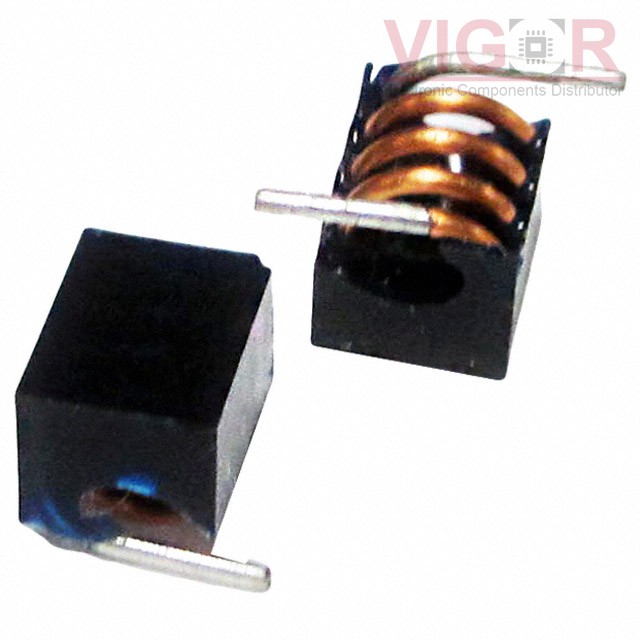

Image is for reference,
please contact us to get the real picture

Part No :

AIAC-0805C-22NK-T

Manufacturer
Abracon
Description
FIXED IND 22NH 550MA 12.9 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
AIAC-0805C-22NK-T PDF
Availability
1867 pieces
Unit Price
$0.58000

Current price of AIAC-0805C-22NK-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AIAC-0805C-22NK-T Specifications
Type Description
Series:AIAC-0805C
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Air
Inductance:22 nH
Tolerance:±10%
Current Rating (Amps):550 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):12.9mOhm Max
Q @ Freq:70 @ 300MHz
Frequency - Self Resonant:2.4GHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:300 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.112" L x 0.071" W (2.85mm x 1.80mm)
Height - Seated (Max):0.083" (2.10mm)
