CMH322522-2R7KL

CMH322522-2R7KL

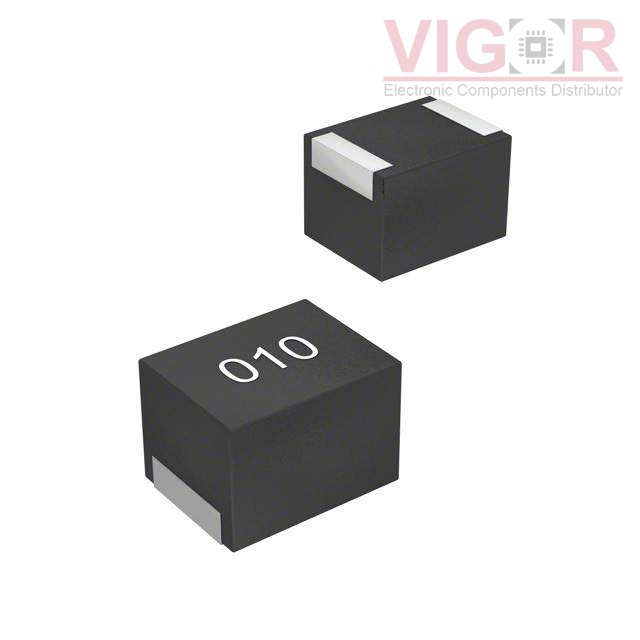

Image is for reference,
please contact us to get the real picture

Part No :

CMH322522-2R7KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 2.7UH 290MA 1.1OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
CMH322522-2R7KL PDF
Availability
0 pieces
Unit Price
$0.20570

Current price of CMH322522-2R7KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMH322522-2R7KL Specifications
Type Description
Series:CMH322522
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:2.7 µH
Tolerance:±10%
Current Rating (Amps):290 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):1.1Ohm Max
Q @ Freq:30 @ 7.96MHz
Frequency - Self Resonant:70MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.094" (2.40mm)
