P1330R-564K

P1330R-564K

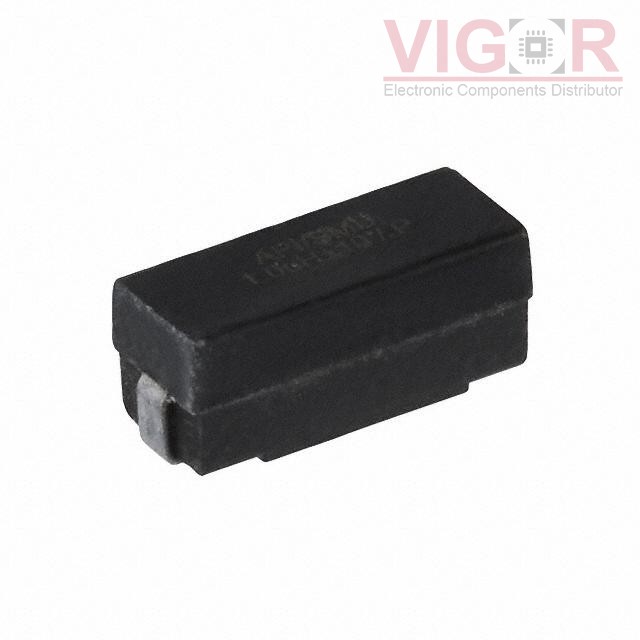

Image is for reference,
please contact us to get the real picture

Part No :

P1330R-564K

Manufacturer
API Delevan
Description
FIXED IND 560UH 138MA 6.96 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
P1330R-564K PDF
Availability
0 pieces
Unit Price
$1.49940

Current price of P1330R-564K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

P1330R-564K Specifications
Type Description
Series:P1330R
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±10%
Current Rating (Amps):138 mA
Current - Saturation (Isat):35mA
Shielding:Unshielded
DC Resistance (DCR):6.96Ohm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max):0.145" (3.68mm)
