SDR0302-220ML

SDR0302-220ML

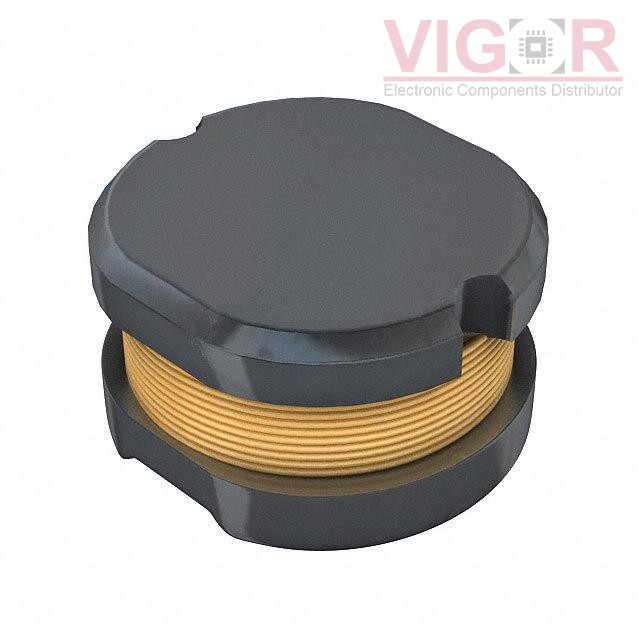

Image is for reference,
please contact us to get the real picture

Part No :

SDR0302-220ML

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 520MA 660MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
SDR0302-220ML PDF
Availability
0 pieces
Unit Price
$0.57000

Current price of SDR0302-220ML is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0302-220ML Specifications
Type Description
Series:SDR0302
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):520 mA
Current - Saturation (Isat):650mA
Shielding:Unshielded
DC Resistance (DCR):660mOhm Max
Q @ Freq:23 @ 2.52MHz
Frequency - Self Resonant:22MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.118" L x 0.110" W (3.00mm x 2.80mm)
Height - Seated (Max):0.110" (2.80mm)
