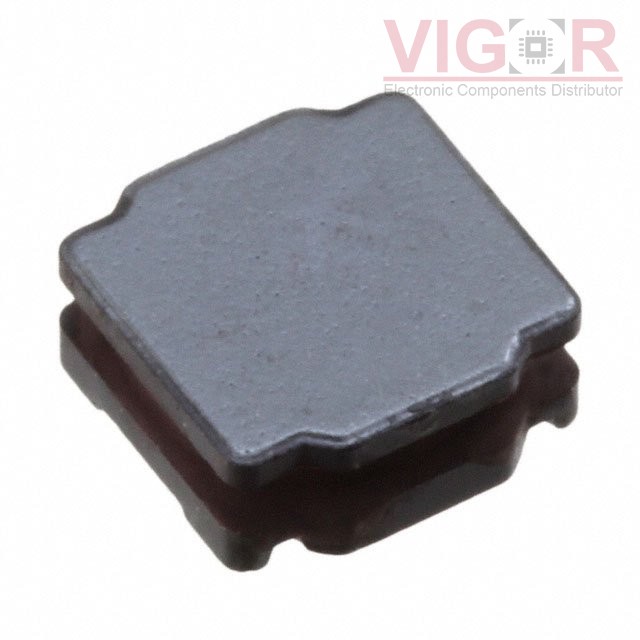

LQH2MPN680MGRL

Image is for reference,
please contact us to get the real picture

Part No :: LQH2MPN680MGRL

Manufacturer: TOKO / Murata

Description: FIXED IND 68UH 160MA 8.04 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: LQH2MPN680MGRL PDF

Availability: 625 pieces

Unit Price: ~~$0.27000~~

Current price of LQH2MPN680MGRL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQH2MPN680MGRL Specifications

Type	Description
Series:	LQH2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±20%
Current Rating (Amps):	160 mA
Current - Saturation (Isat):	230mA
Shielding:	Shielded
DC Resistance (DCR):	8.04Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	7MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0806 (2016 Metric)
Supplier Device Package:	0806 (2016 Metric)
Size / Dimension:	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):	0.037" (0.95mm)
