IMC1812BN820J

IMC1812BN820J

Image is for reference,
please contact us to get the real picture

Part No :

IMC1812BN820J

Manufacturer
Vishay / Dale
Description
FIXED IND 82UH 120MA 7 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
IMC1812BN820J PDF
Availability
0 pieces
Unit Price
$0.90610

Current price of IMC1812BN820J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC1812BN820J Specifications
Type Description
Series:IMC-1812
Package:Bulk
Part Status:Active
Type:Wirewound
Material - Core:Iron Powder
Inductance:82 µH
Tolerance:±5%
Current Rating (Amps):120 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):7Ohm Max
Q @ Freq:50 @ 2.52MHz
Frequency - Self Resonant:8MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.134" (3.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

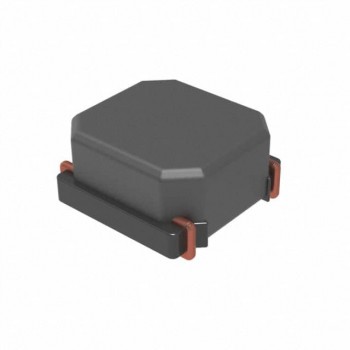

HOT LMLP07A7MR82DTAS

LMLP07A7MR82DTAS

FIXED IND 820NH 13A 8MOHM SMD

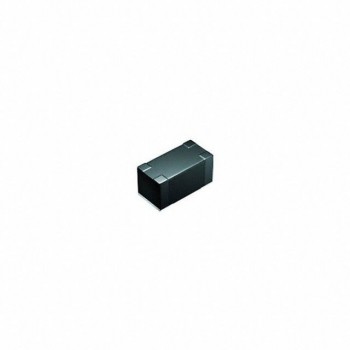

HOT BRC2016T6R8M

BRC2016T6R8M

FIXED IND 6.8UH 560MA 429 MOHM

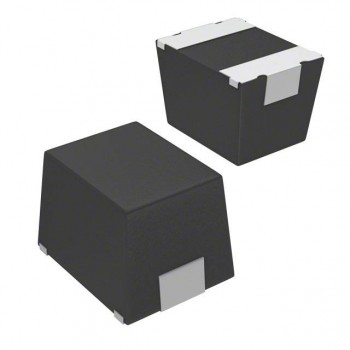

HOT ISC1210ERR10M
