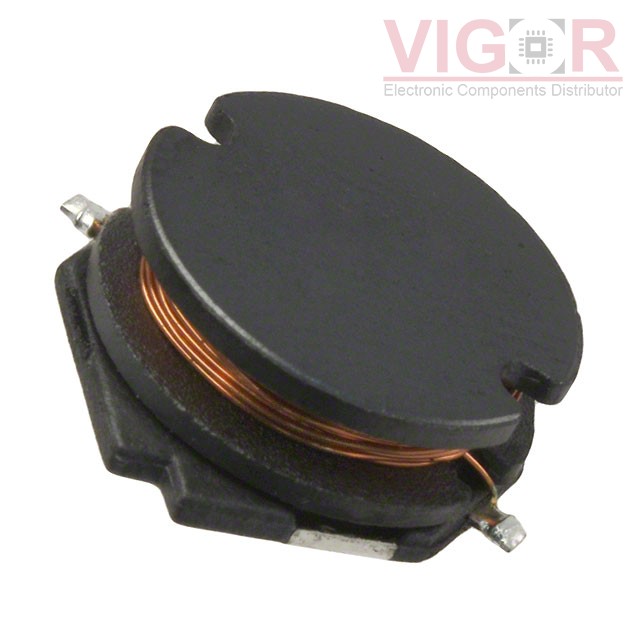

SDR1305-100M

SDR1305-100M

Image is for reference,
please contact us to get the real picture

Part No :

SDR1305-100M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 10UH 3.6A 37 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
SDR1305-100M PDF
Availability
0 pieces
Unit Price
$0.40480

Current price of SDR1305-100M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1305-100M Specifications
Type Description
Series:SDR1305
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:10 µH
Tolerance:±20%
Current Rating (Amps):3.6 A
Current - Saturation (Isat):4.4A
Shielding:Unshielded
DC Resistance (DCR):37mOhm Max
Q @ Freq:35 @ 2.52MHz
Frequency - Self Resonant:27MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max):0.201" (5.10mm)
