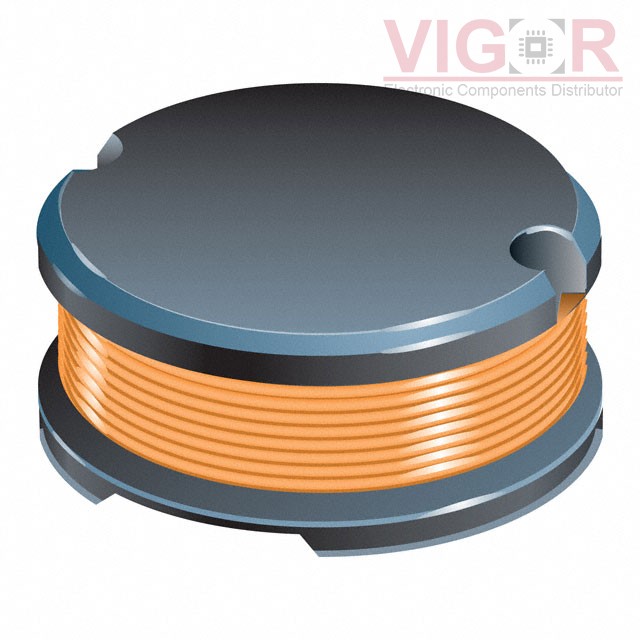

SDR1307A-2R2M

SDR1307A-2R2M

Image is for reference,
please contact us to get the real picture

Part No :

SDR1307A-2R2M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 2.2UH 9A 6 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
SDR1307A-2R2M PDF
Availability
0 pieces
Unit Price
$0.52800

Current price of SDR1307A-2R2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1307A-2R2M Specifications
Type Description
Series:SDR1307A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):9 A
Current - Saturation (Isat):18A
Shielding:Unshielded
DC Resistance (DCR):6mOhm Max
Q @ Freq:22 @ 7.96MHz
Frequency - Self Resonant:50MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.512" Dia (13.00mm)
Height - Seated (Max):0.287" (7.30mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IHLP2525CZER4R7M07

IHLP2525CZER4R7M07

FIXED IND 4.7UH 5.5A 37.11 MOHM

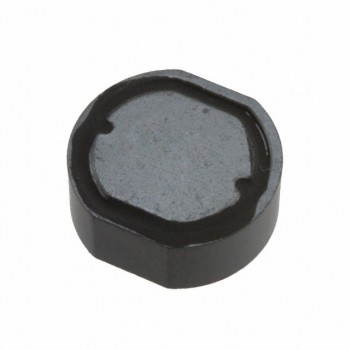

HOT CDR125NP-121MC

CDR125NP-121MC

FIXED IND 120UH 950MA 280 MOHM

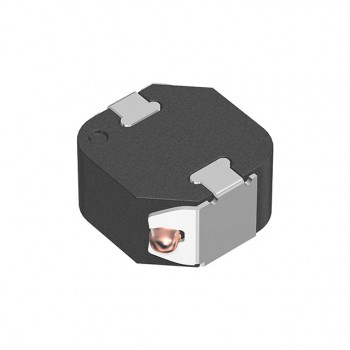

HOT SPM5030T-1R5M
