NLV25T-R27J-PF

Image is for reference,
please contact us to get the real picture

Part No :: NLV25T-R27J-PF

Manufacturer: TDK Corporation

Description: FIXED IND 270NH 420MA 550 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: NLV25T-R27J-PF PDF

Availability: 4000 pieces

Unit Price: ~~$0.24000~~

Current price of NLV25T-R27J-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLV25T-R27J-PF Specifications

Type	Description
Series:	NLV-PF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	270 nH
Tolerance:	±5%
Current Rating (Amps):	420 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	550mOhm Max
Q @ Freq:	30 @ 25.2MHz
Frequency - Self Resonant:	425MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008 (2520 Metric)
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.075" (1.90mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

MHQ1005P72NHT000

FIXED IND 72NH 160MA 2.2 OHM SMD

HOT

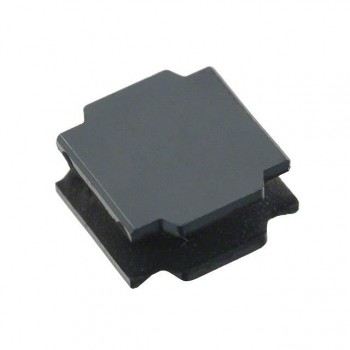

NRS6012T1R5NMGGV

FIXED IND 1.5UH 2.1A 80.4 MOHM

HOT

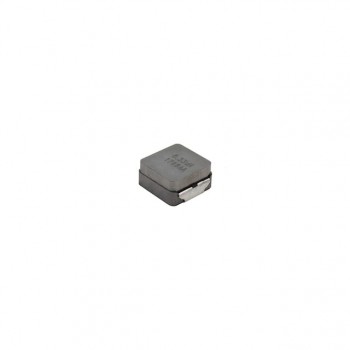

IHLP4040EDERR47M5A
