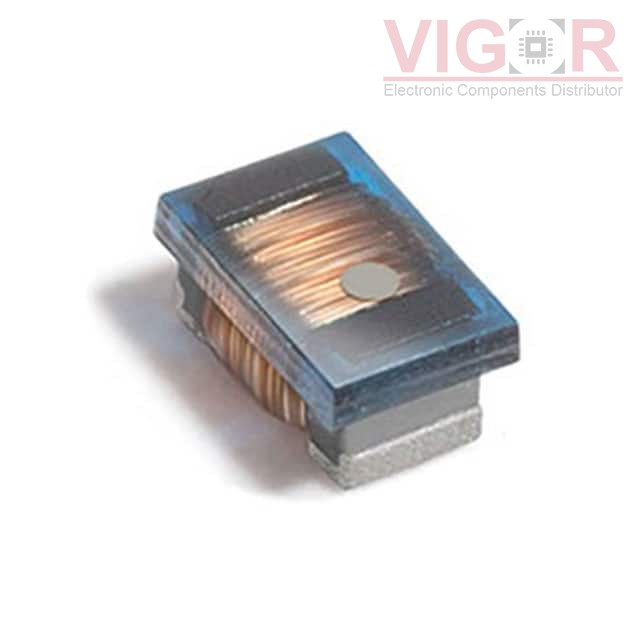

0603AF-85NXJEW

Image is for reference,
please contact us to get the real picture

Part No :: 0603AF-85NXJEW

Manufacturer: COILCRAFT

Description: WIREWOUND INDUCTOR [email protected]

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 25 - Aug 29 2025

DataSheet: 0603AF-85NXJEW PDF

Availability: 3848 pieces

Unit Price: ~~$1.49000~~

Current price of 0603AF-85NXJEW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0603AF-85NXJEW Specifications

Type	Description
Series:	0603AF
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	85 nH
Tolerance:	±5%
Current Rating (Amps):	1.5 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	65mOhm Max
Q @ Freq:	15 @ 7.9MHz
Frequency - Self Resonant:	1.6GHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max):	0.036" (0.91mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

MLG1005S0N5CT000

FIXED IND 0.5NH 1A 100 MOHM SMD

HOT

IMC1210ER1R2K

FIXED IND 1.2UH 390MA 750 MOHM

HOT

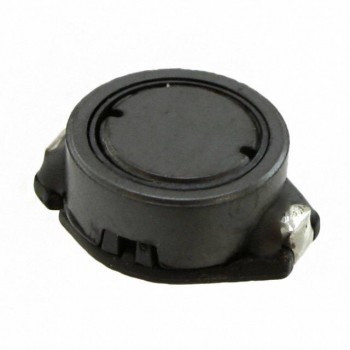

SRR1005-3R0M
