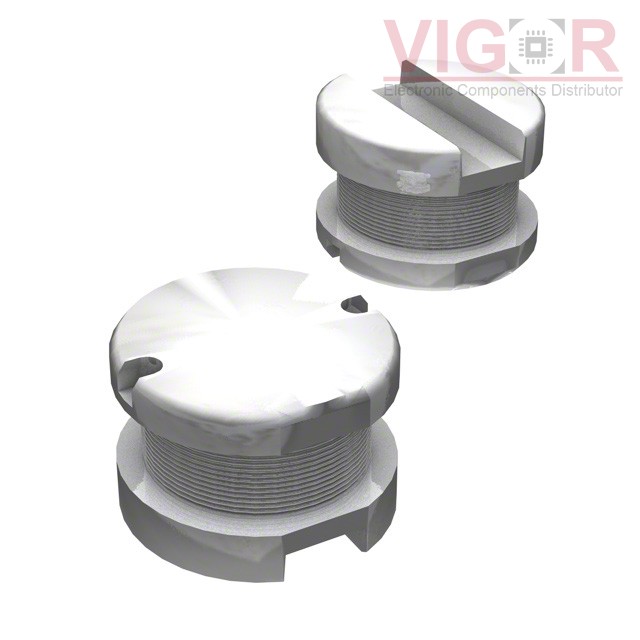

SDR0603-820KL

SDR0603-820KL

Image is for reference,
please contact us to get the real picture

Part No :

SDR0603-820KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 82UH 400MA 840MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
SDR0603-820KL PDF
Availability
386 pieces
Unit Price
$0.57000

Current price of SDR0603-820KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0603-820KL Specifications
Type Description
Series:SDR0603
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:82 µH
Tolerance:±10%
Current Rating (Amps):400 mA
Current - Saturation (Isat):480mA
Shielding:Unshielded
DC Resistance (DCR):840mOhm Max
Q @ Freq:15 @ 2.52MHz
Frequency - Self Resonant:11MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):0.154" (3.90mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IHLP6767DZER2R2M11

IHLP6767DZER2R2M11

FIXED IND 2.2UH 26A 5.03 MOHM
HOT MHQ1005P11NHT000

MHQ1005P11NHT000

FIXED IND 11NH 450MA 240 MOHM

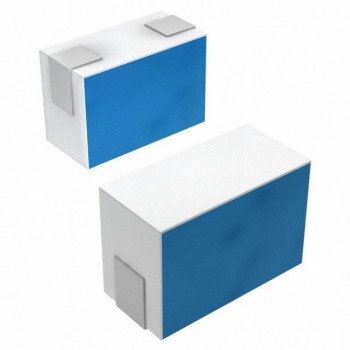

HOT LQP03TQ0N8B02D
