B82559A0303A024

B82559A0303A024

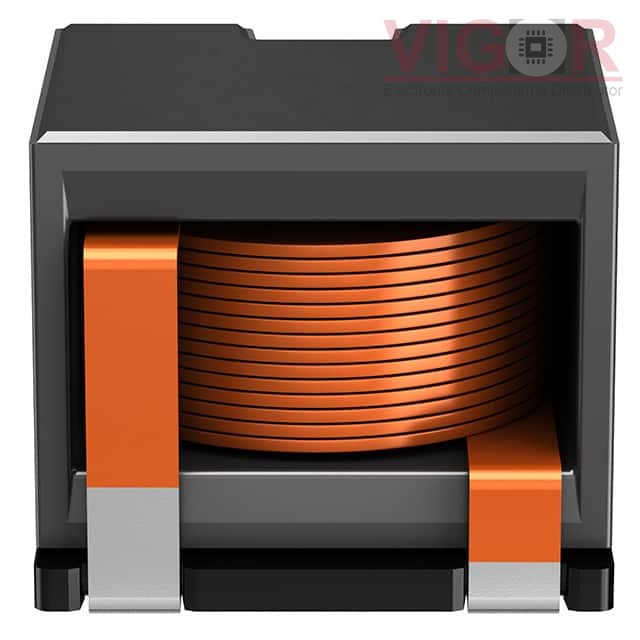

Image is for reference,
please contact us to get the real picture

Part No :

B82559A0303A024

Manufacturer
TDK EPCOS
Description
FIXED IND 30UH 22.9A 3.6 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
B82559A0303A024 PDF
Availability
138 pieces
Unit Price
$9.37000

Current price of B82559A0303A024 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82559A0303A024 Specifications
Type Description
Series:ERU24 - Flat Wire Inductor
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:30 µH
Tolerance:±10%
Current Rating (Amps):22.9 A
Current - Saturation (Isat):15.7A
Shielding:Shielded
DC Resistance (DCR):3.6mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard, 3 Lead
Supplier Device Package:-
Size / Dimension:0.972" L x 0.898" W (24.70mm x 22.80mm)
Height - Seated (Max):0.839" (21.30mm)
