0402DC-R12XJRW

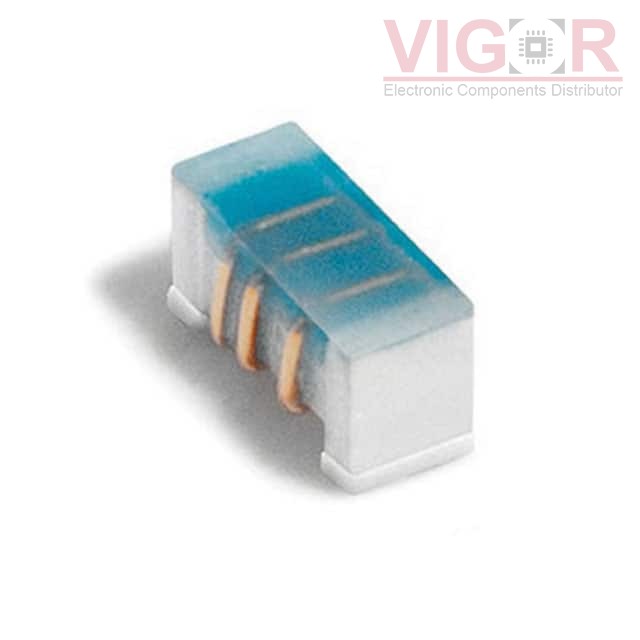

Image is for reference,
please contact us to get the real picture

Part No :: 0402DC-R12XJRW

Manufacturer: COILCRAFT

Description: CERAMIC CHIP INDUCTORS, R12NH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: 0402DC-R12XJRW PDF

Availability: 960 pieces

Unit Price: ~~$1.36000~~

Current price of 0402DC-R12XJRW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0402DC-R12XJRW Specifications

Type	Description
Series:	0402DC
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	120 nH
Tolerance:	±5%
Current Rating (Amps):	300 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.6Ohm Max
Q @ Freq:	46 @ 900MHz
Frequency - Self Resonant:	2.2GHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402
Size / Dimension:	0.044" L x 0.026" W (1.11mm x 0.66mm)
Height - Seated (Max):	0.026" (0.65mm)
