HCM0503-2R2-R

HCM0503-2R2-R

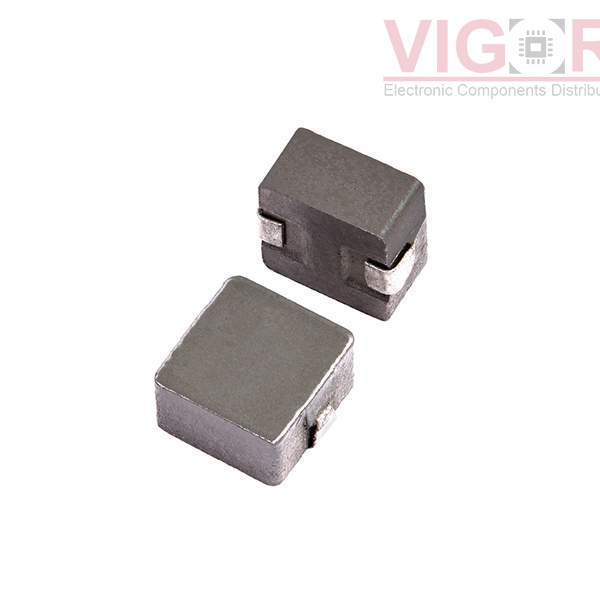

Image is for reference,
please contact us to get the real picture

Part No :

HCM0503-2R2-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 2.2UH 6.8A 25 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
HCM0503-2R2-R PDF
Availability
946 pieces
Unit Price
$0.99000

Current price of HCM0503-2R2-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCM0503-2R2-R Specifications
Type Description
Series:HCM0503
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Iron Powder
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):6.8 A
Current - Saturation (Isat):6.5A
Shielding:Shielded
DC Resistance (DCR):25mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Max):0.118" (3.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQW15AN6N2D80D

LQW15AN6N2D80D

FIXED IND 6.2NH 1.6A 56 MOHM SMD
HOT ELC-3GN220M

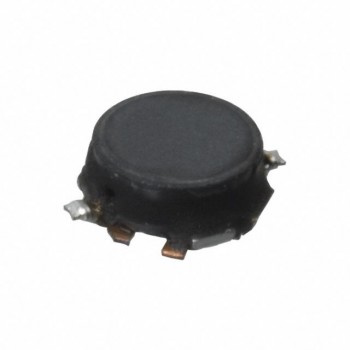

ELC-3GN220M

FIXED IND 22UH 330MA 950 MOHM
HOT AISC-0805F-100G-T

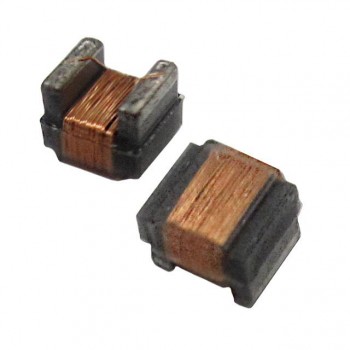

AISC-0805F-100G-T
