NRS3015T220MNGH

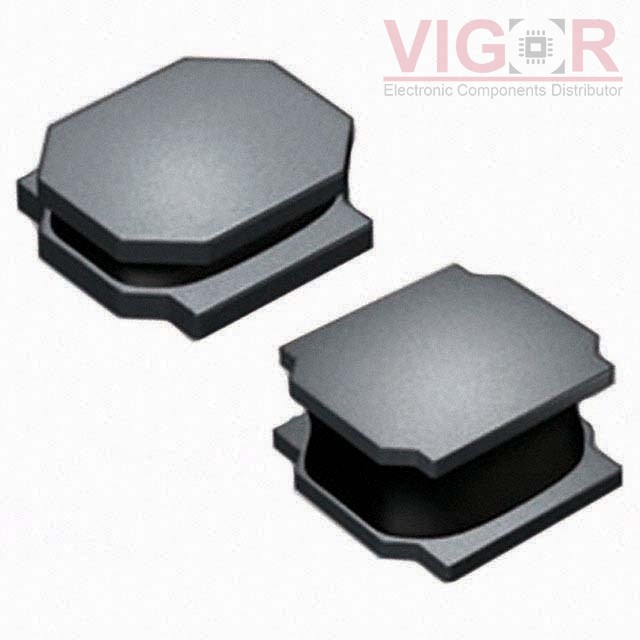

Image is for reference,
please contact us to get the real picture

Part No :: NRS3015T220MNGH

Manufacturer: TAIYO YUDEN

Description: FIXED IND 22UH 470MA 624 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: NRS3015T220MNGH PDF

Availability: 0 pieces

Unit Price: ~~$0.11880~~

Current price of NRS3015T220MNGH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NRS3015T220MNGH Specifications

Type	Description
Series:	NR, S Type
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	470 mA
Current - Saturation (Isat):	470mA
Shielding:	Shielded
DC Resistance (DCR):	624mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	20MHz
Ratings:	-
Operating Temperature:	-25°C ~ 120°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):	0.059" (1.50mm)
