B82477R4223M100

B82477R4223M100

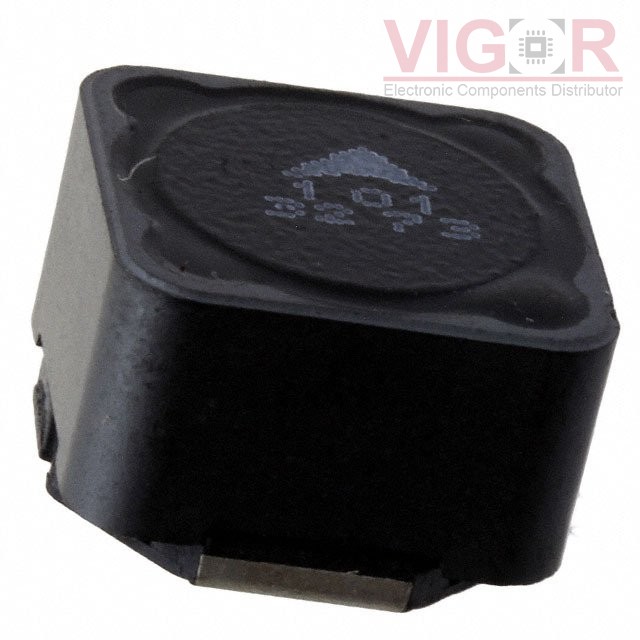

Image is for reference,
please contact us to get the real picture

Part No :

B82477R4223M100

Manufacturer
TDK EPCOS
Description
FIXED IND 22UH 4.45A 32 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
B82477R4223M100 PDF
Availability
669 pieces
Unit Price
$2.81000

Current price of B82477R4223M100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82477R4223M100 Specifications
Type Description
Series:B82477R4
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):4.45 A
Current - Saturation (Isat):6.1A
Shielding:Shielded
DC Resistance (DCR):32mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):0.335" (8.50mm)
