NRS5010T220MMGFV

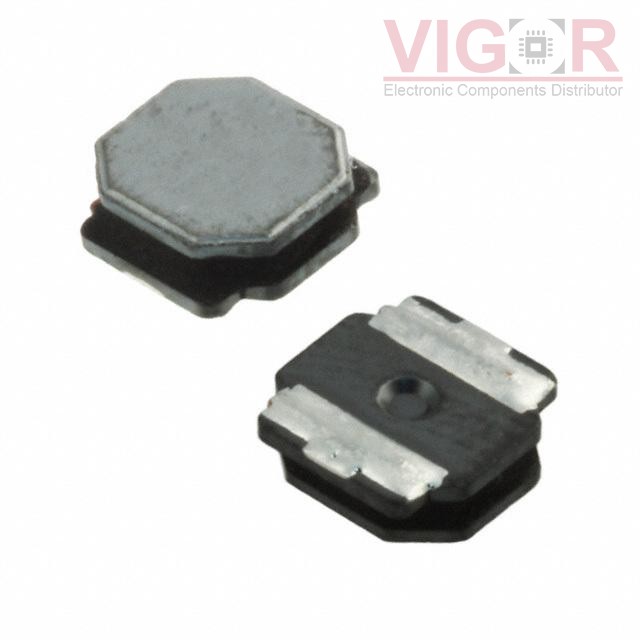

Image is for reference,
please contact us to get the real picture

Part No :: NRS5010T220MMGFV

Manufacturer: TAIYO YUDEN

Description: FIXED IND 22UH 450MA 720 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: NRS5010T220MMGFV PDF

Availability: 0 pieces

Unit Price: ~~$0.21165~~

Current price of NRS5010T220MMGFV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NRS5010T220MMGFV Specifications

Type	Description
Series:	NR, S Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	450 mA
Current - Saturation (Isat):	550mA
Shielding:	Shielded
DC Resistance (DCR):	720mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	15MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max):	0.039" (1.00mm)
