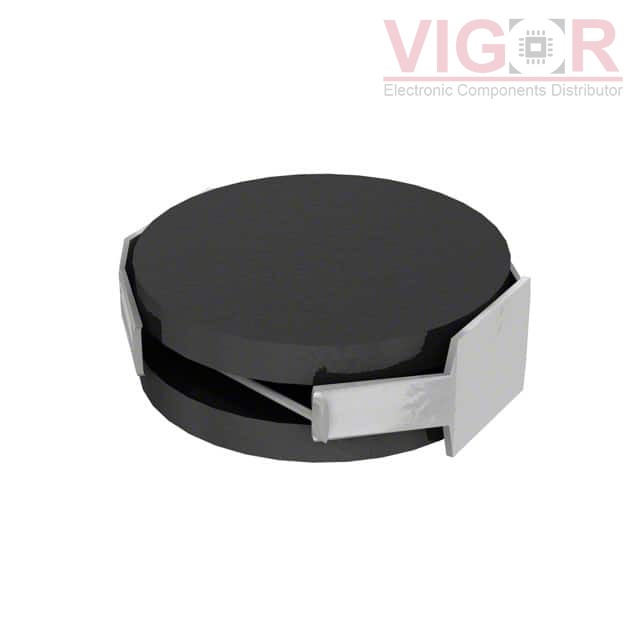

CDH2D09BNP-2R4MC

Image is for reference,
please contact us to get the real picture

Part No :: CDH2D09BNP-2R4MC

Manufacturer: Sumida Corporation

Description: FIXED IND 2.4UH 1.18A 160 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: CDH2D09BNP-2R4MC PDF

Availability: 0 pieces

Unit Price: ~~$0.37400~~

Current price of CDH2D09BNP-2R4MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDH2D09BNP-2R4MC Specifications

Type	Description
Series:	CDH2D09B
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	2.4 µH
Tolerance:	±20%
Current Rating (Amps):	1.18 A
Current - Saturation (Isat):	1A
Shielding:	Unshielded
DC Resistance (DCR):	160mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.112" L x 0.106" W (2.85mm x 2.70mm)
Height - Seated (Max):	0.039" (1.00mm)
