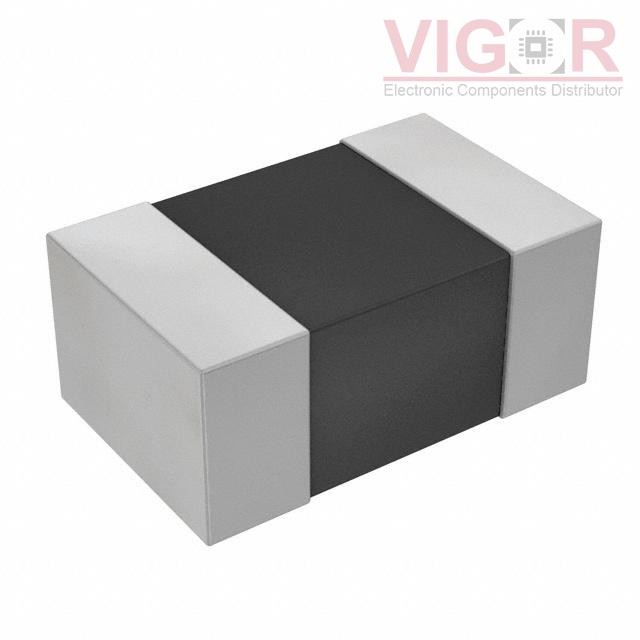

LQM21PN2R2MGHL

Image is for reference,
please contact us to get the real picture

Part No :: LQM21PN2R2MGHL

Manufacturer: TOKO / Murata

Description: FIXED IND 2.2UH 1.3A 156 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: LQM21PN2R2MGHL PDF

Availability: 0 pieces

Unit Price: ~~$0.27000~~

Current price of LQM21PN2R2MGHL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQM21PN2R2MGHL Specifications

Type	Description
Series:	LQM21
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	1.3 A
Current - Saturation (Isat):	450mA
Shielding:	Shielded
DC Resistance (DCR):	156mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	40MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.039" (1.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

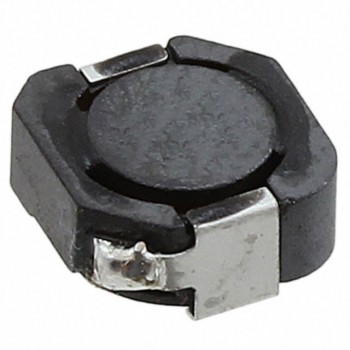

CDRH5D28RNP-5R0NC

FIXED IND 5UH 1.85A 31.1 MOHM

HOT

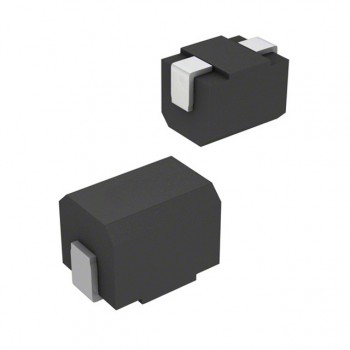

3613CR22M

FIXED IND 220NH 665MA 250 MOHM

HOT

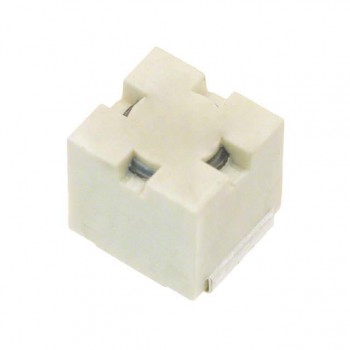

B82442H1274K000
